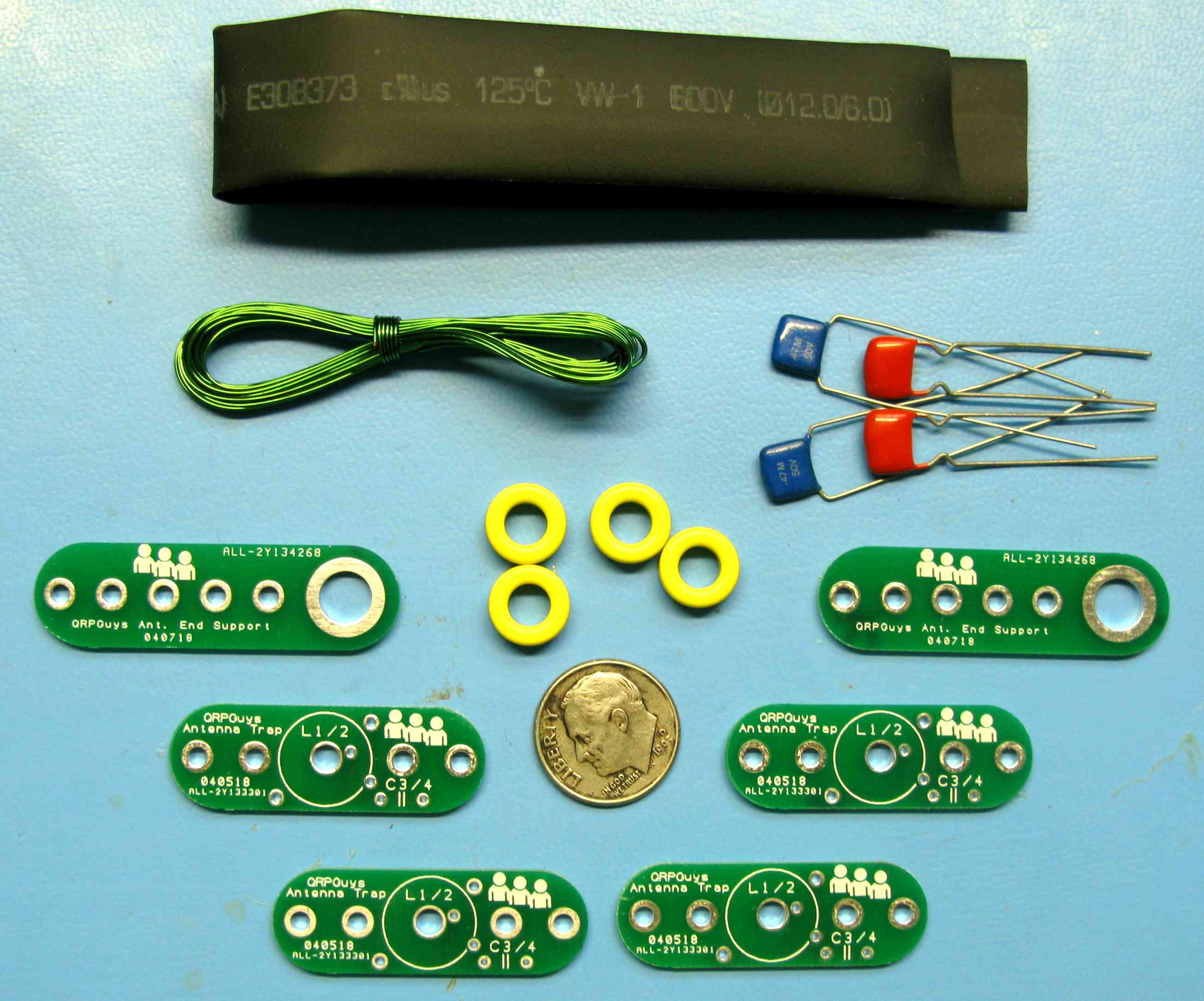

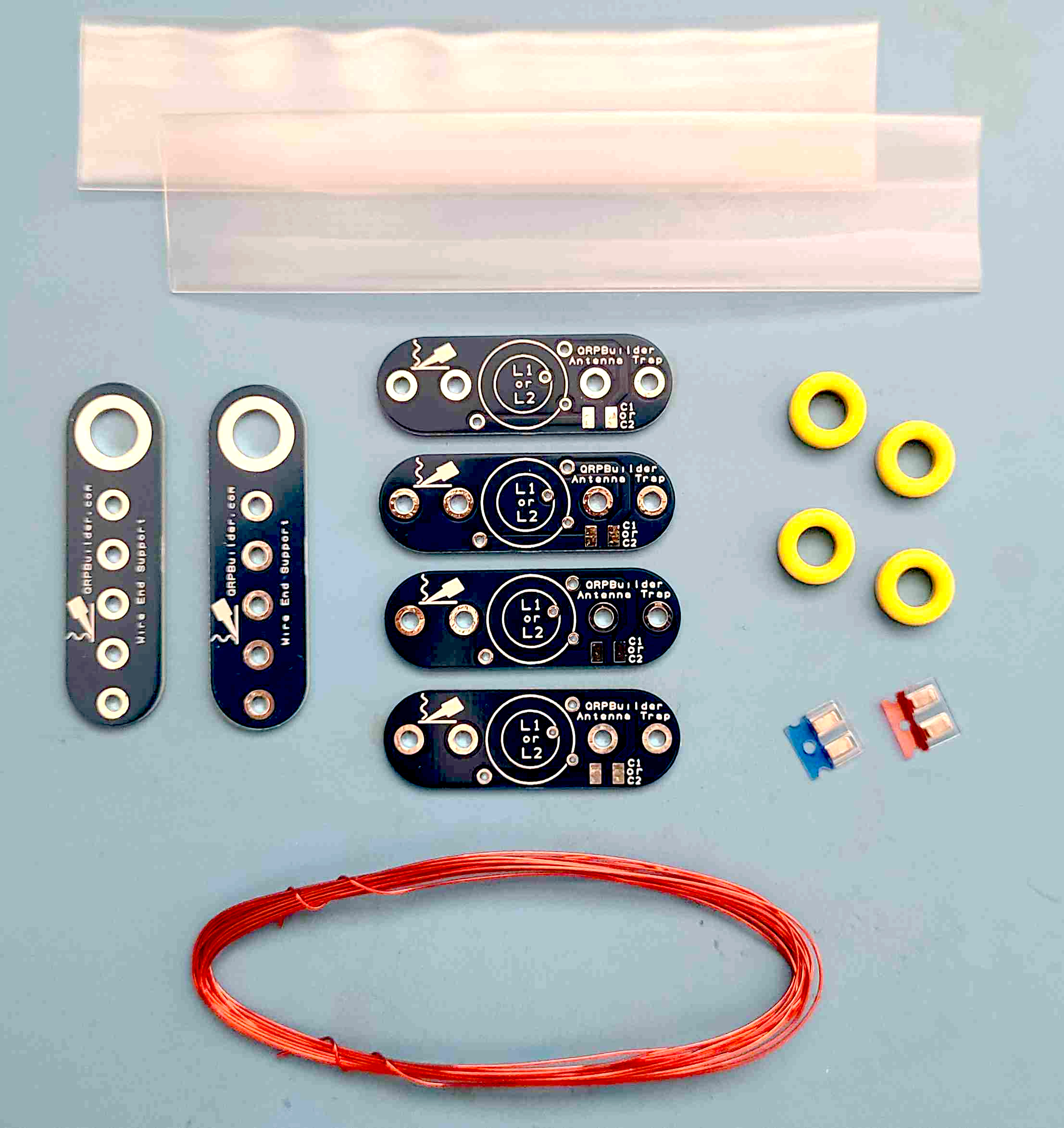

This is a universal lightweight trap kit for those who want to incorporate their own traps into wire antennas. The supplied components supplied will enable you to construct traps for 30m and 20m for use with a 40m wire. Refer to the end of the manual to modify the values for you own frequencies for end fed or dipole antennas.The kit contains four trap pcbs, two antenna end connector pcb’s, four T37-6 toroids, two 68pF-2KV C0G/NP0 capacitors, two 150pF-2KV C0G/NP0 capacitors, 8′ of 26awg magnet wire, and enough 1/2″ poly shrink wrap tubing to cover all four traps. They are very lightweight, easy to assemble, easily rated for 20W, and use with 22-26awg stranded element wire. Supplied are enough components for a three band trap dipole.
Wire trap assembly manual here
