PTO (Permeability Tuned Oscillator) Mechanism Kit

 QRPBuilder PTO (Permeability Tuned Oscillator) Mechanism Kit,

w/ basic free VFO bare board – $25






We will also be at Dayton FDIM2024 vendor night, Thursday May 16, with all the kits available.



This project started out years ago and was borne out of reviewing the TinEar Receiver assembly manual. I noticed the PTO (Permeability Tuned Oscillator) VFO was using a soda straw coil form and threaded brass rod as the tuning slug. I was uncomfortable with the idea of the tuning shaft having to move in and out through the front of the chassis as you tuned across the band. I have also seen this on a few other designs like the Norcal 2030 and MMR-40.

A year or two later I worked on a device that would keep the tuning knob stationary in relation to the front panel, (Z axis), and not have the threaded rod rotate at all, only moving it in and out of the coil form. It worked well but the necessity of machined parts, and overall size made it difficult for the average builder to embrace. Fast forward to recently, and building on the success of designing paddles for QRPGuys out of pcb material, I decided to re-visit the PTO project to see if I could reduce the dependence on machined components, size, and complexity.

The goal was to duplicate the action and performance of the original design, and use the fewest components.

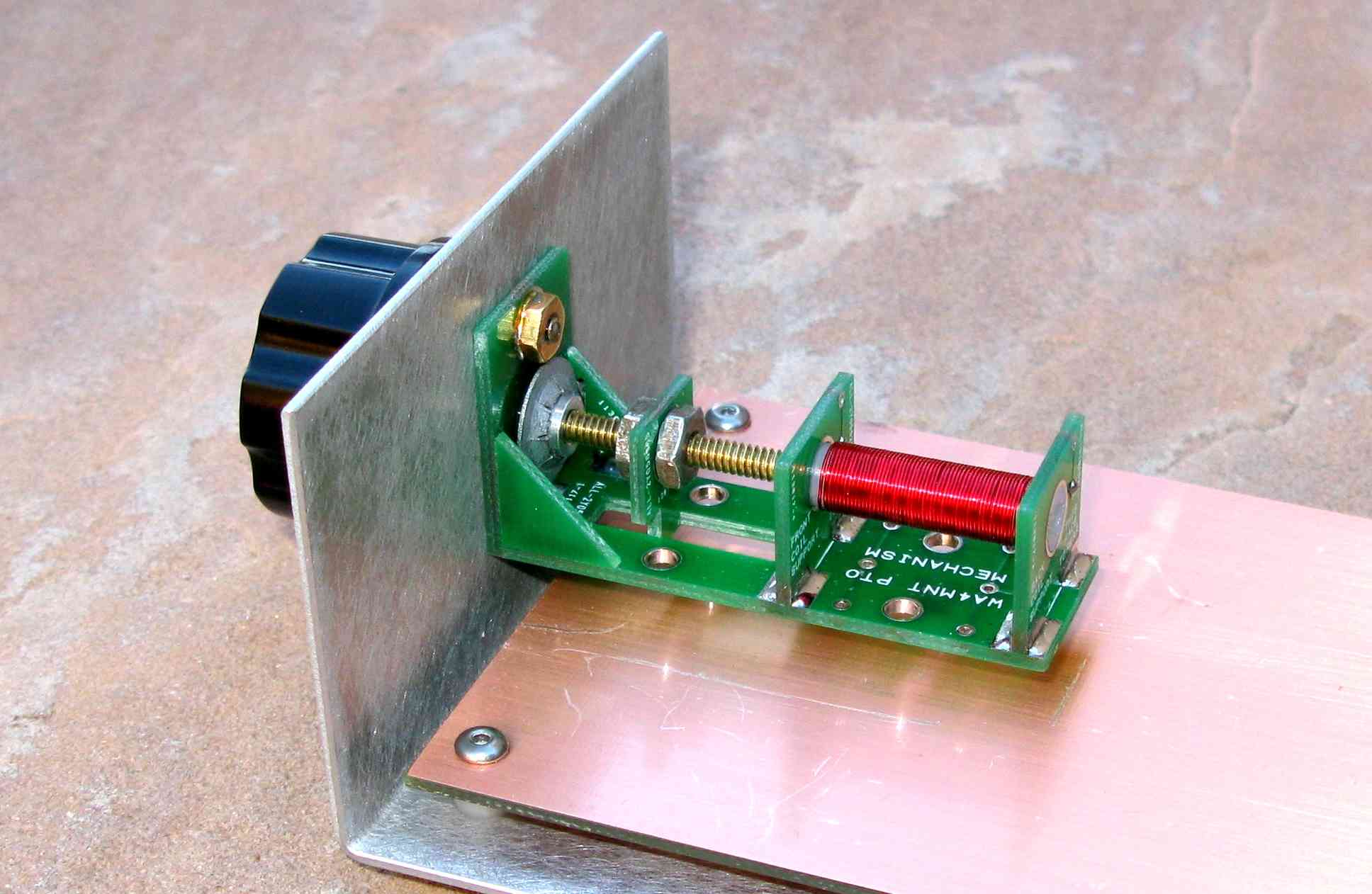

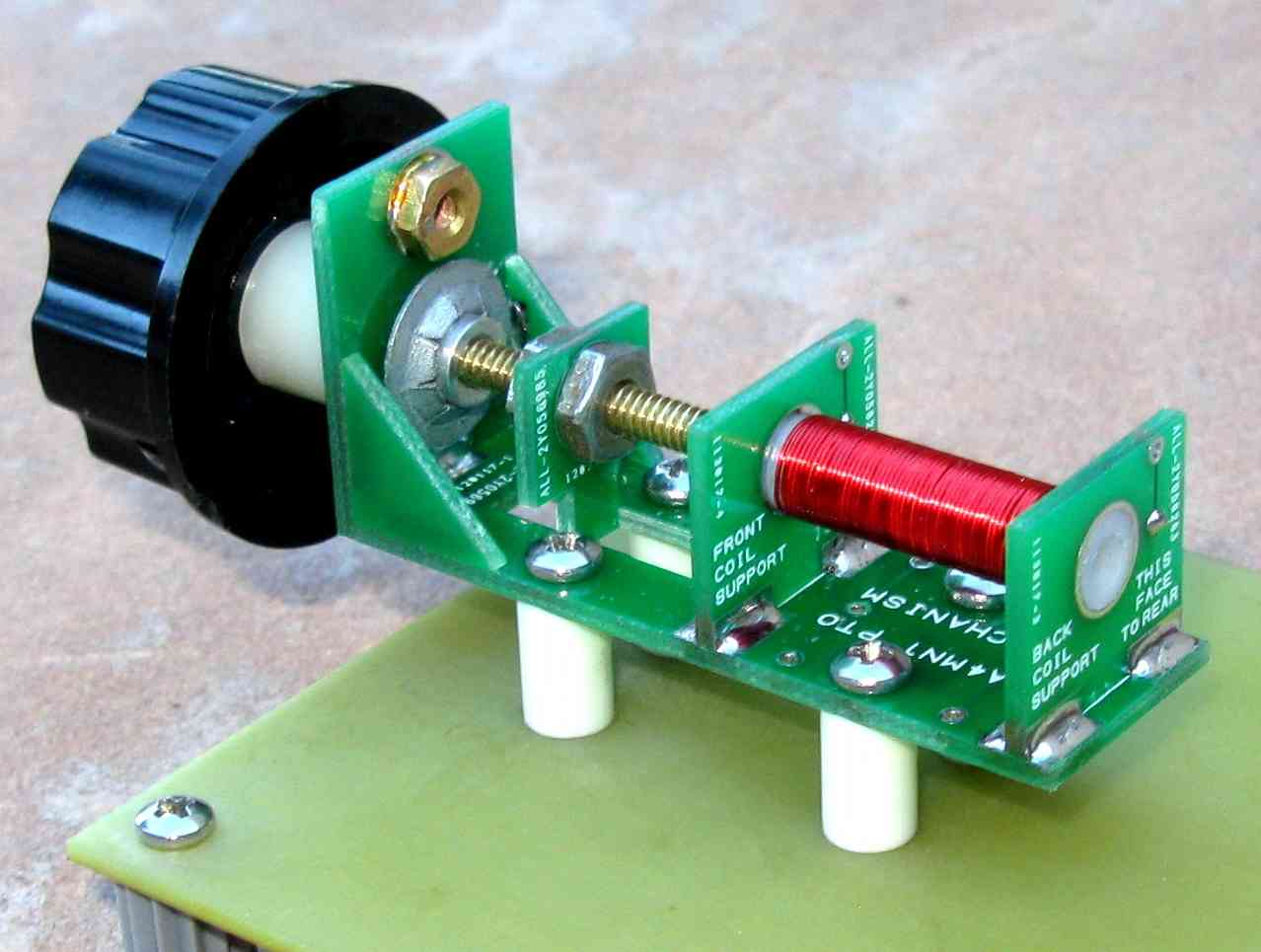

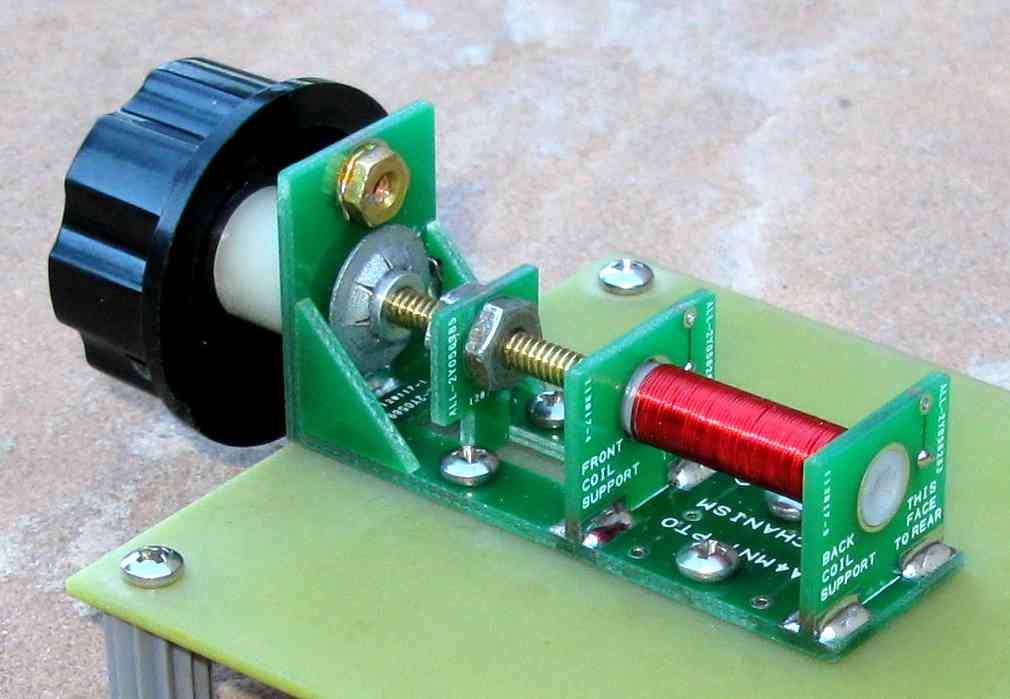

The nylon coil form allows for an inductor with a usable winding of 3/4” long x 1/4” O.D. or 3/8″ O.D. with the supplied sleeve. Having 32 turns/inch thread on the threaded rod, translates to 24 turns of the tuning knob, if the full available coil length is used. There are provisions for a separate optional winding on top of the main winding if your experiments or design requires one. There are four mounting options, secured to a chassis front, mounted flush on a pcb, mounted over a pcb with spacers to allow components to be mounted under the device, and mounting on a complimentary vfo oscillator pcb supplied for your experimentation. Consult the assembly manual and the board details below. The device has a small footprint of 3/4″ wide x 3/4″ high, and about 2-1/4″ long. The kit comes complete, including the knob and chassis mounting screw. You supply the inductor wire for your particular project and #4 hardware if you need to mount it to a pcb. The assembly with knob weighs 30 grams.



Click here for the assembly manual

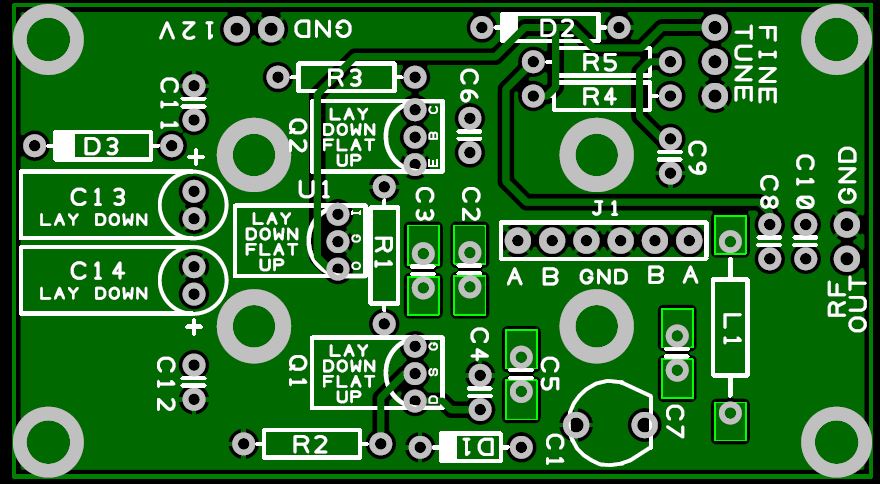

Click here for using  the complimentary PTO/VFO development bare board

Click here for the original TinEar Receiver manual that spawned the project

Click here for the Norcal NC2030 Transceiver manual for reference



Click here for   SUPPORT  or inquiries.



Additional links to experimental PTO Projects:



http://www.wa6otp.com/pto.htm

http://m1kta-qrp.blogspot.com/2010/01/pto-vfo.html

https://www.zl2pd.com/ptovfo.html

https://swharden.com/blog/2011-06-02-screwy-oscillator-idea/

http://www.vk2zay.net/article/46
