Iambic SODA Mini Paddle

 QRPBuilder Iambic SODA Mini Paddle kit – $25


We will also be at Dayton FDIM2024 vendor night, Thursday May 16, with all the kits available.

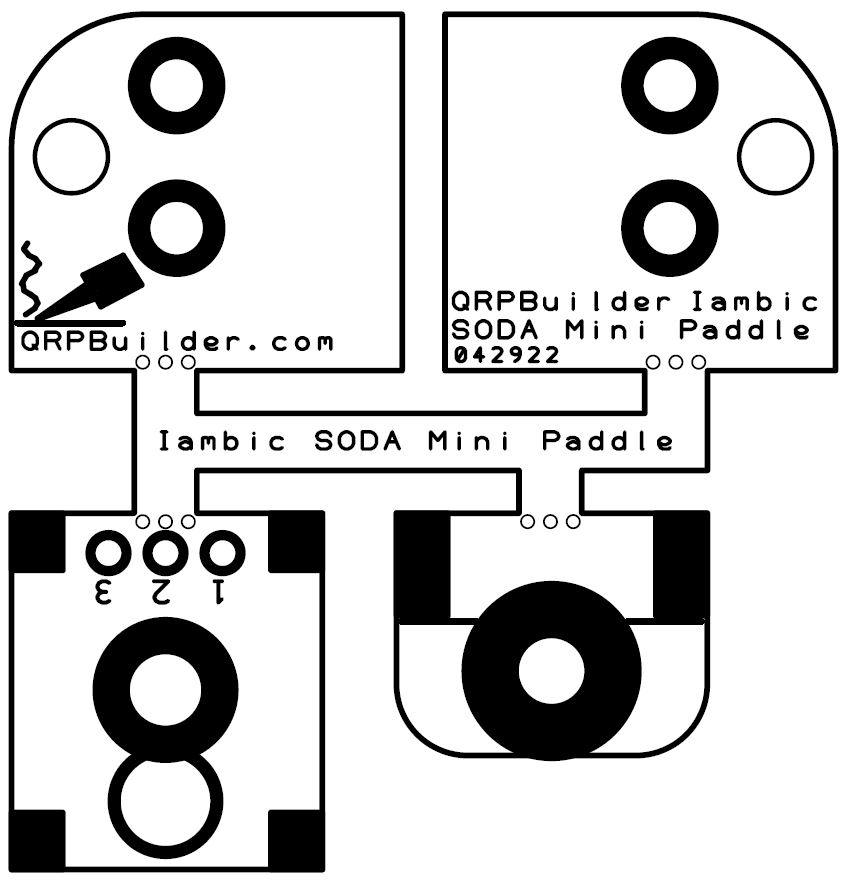

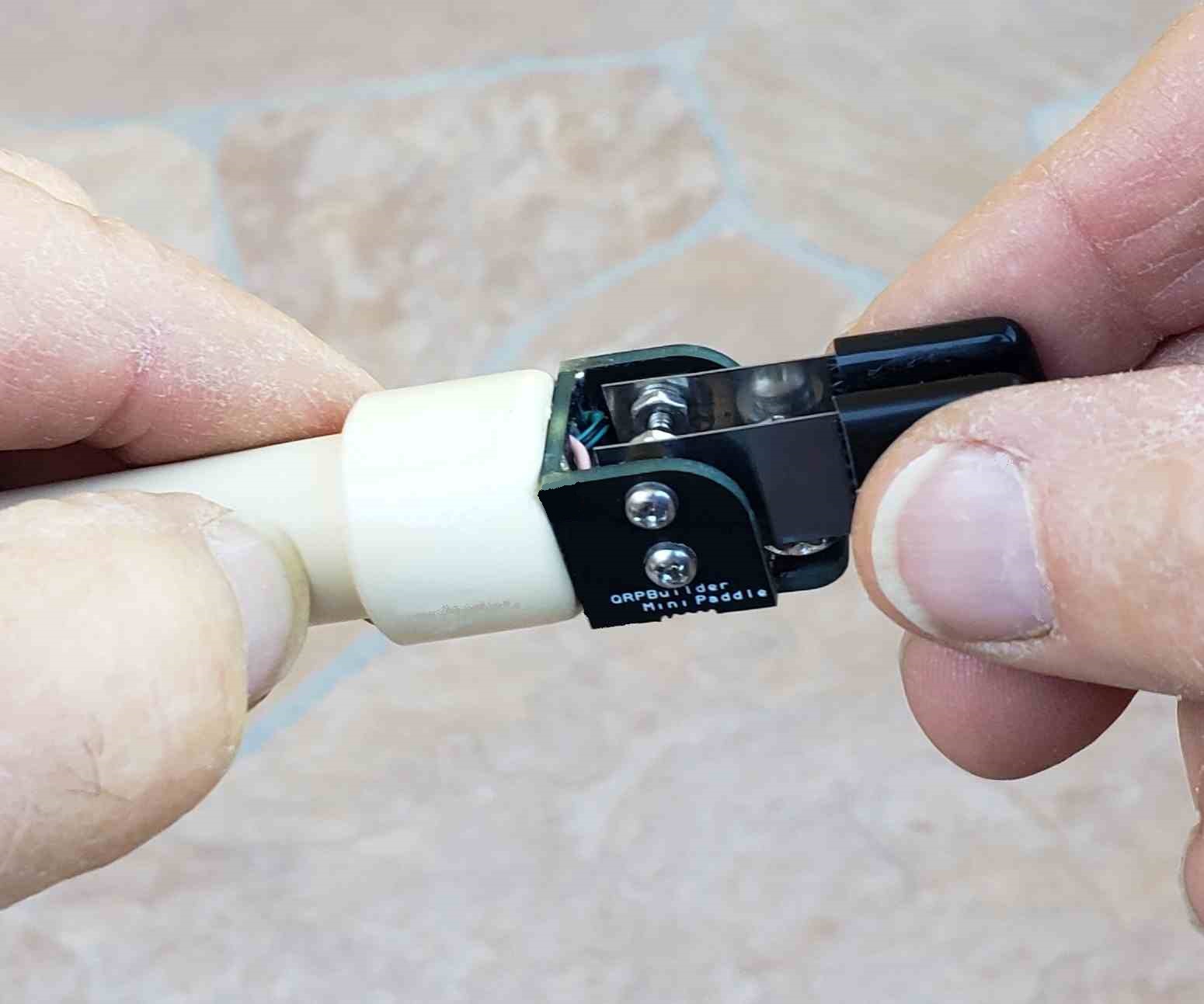

No need to take your expensive paddle out into the field for a SOTA or POTA activation. We designed a small inexpensive hand held iambic paddle that will fit into your go bag easily, with no heavy base to carry around, and easy to hold on to while using. It is fabricated from FR4 pcb material and all hardware is stainless steel. All the electrical circuitry is embedded into the pieces and forms the needed connections upon assembly.

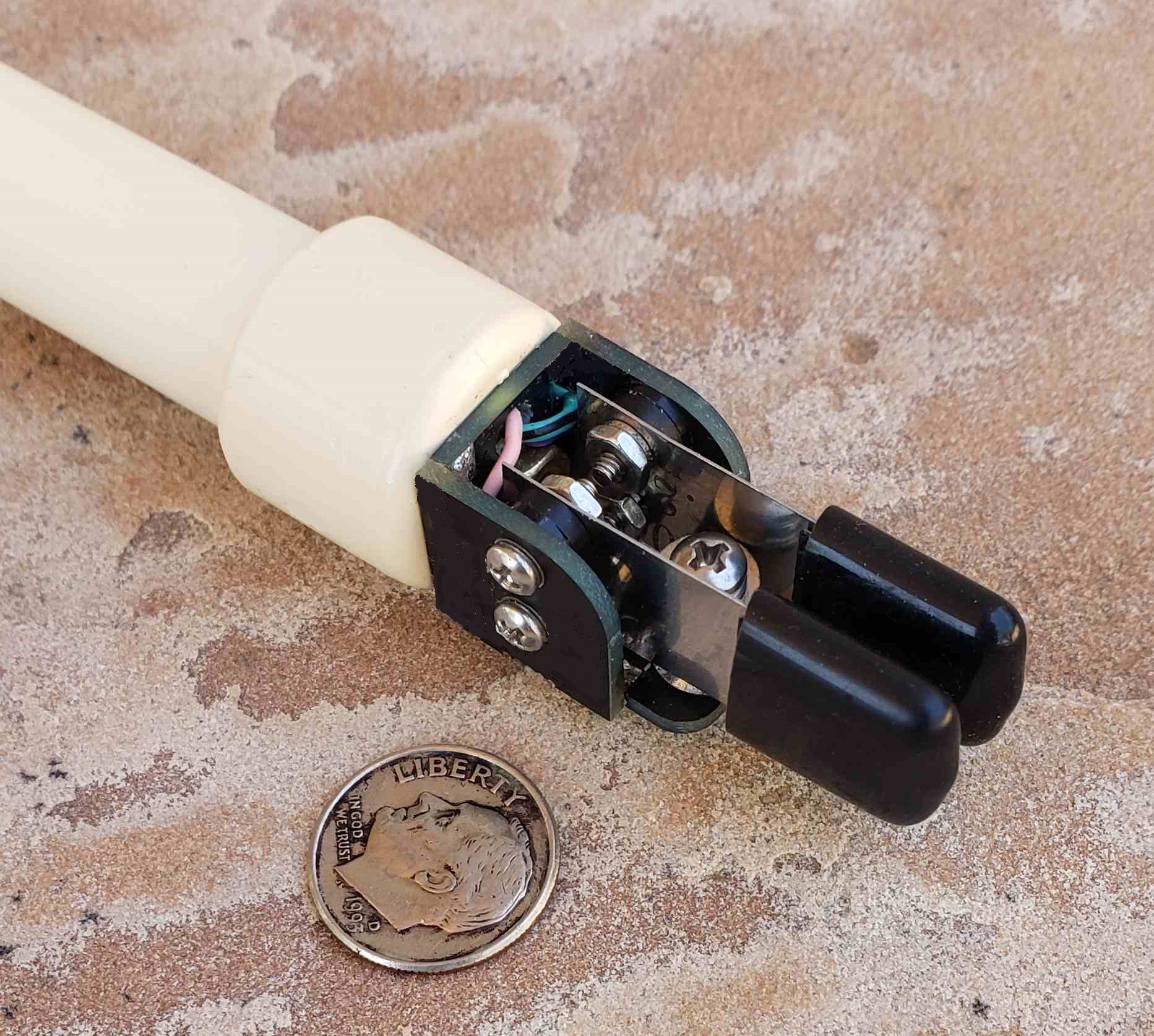

The paddle is a dual lever design with all stainless steel levers and contact hardware. The assembled weight is less than 1 oz. (30.1 gm). All hardware is included. The tools required are a soldering iron with a small tip, rosin core solder, #1 Phillips screwdriver, needle nose pliers, tweezers for the hardware, and a flat surface to work on. Allow a couple of hours or so to build. The assembly hardware is small, so on a difficulty scale of 1 to 5, 5 being the most difficult, this is rated at 4.


For support email to : qrpbuilder@gmail.com


Click here for assembly manual
